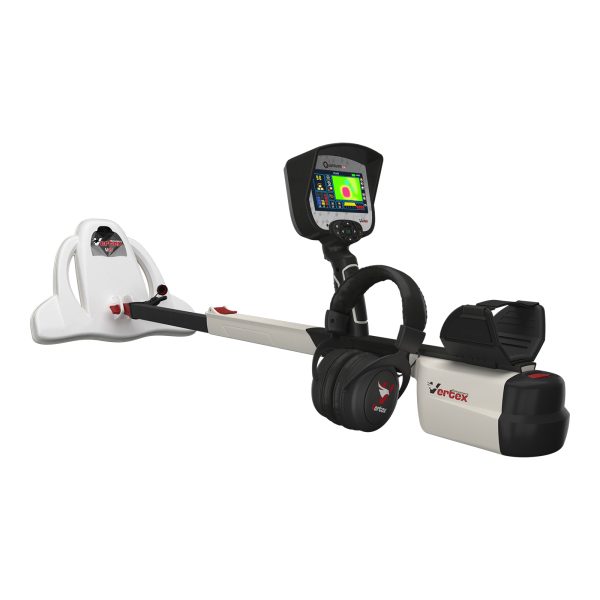

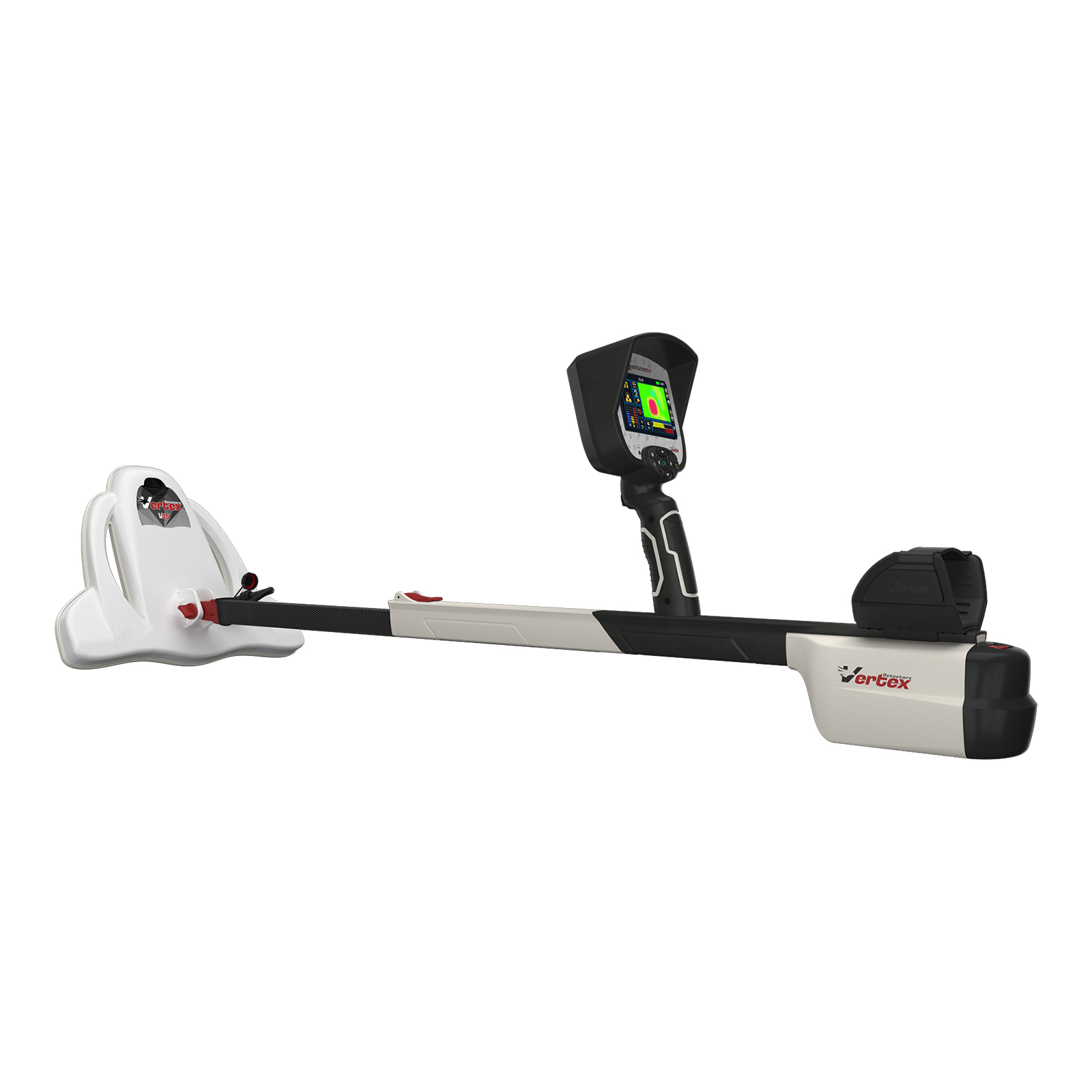

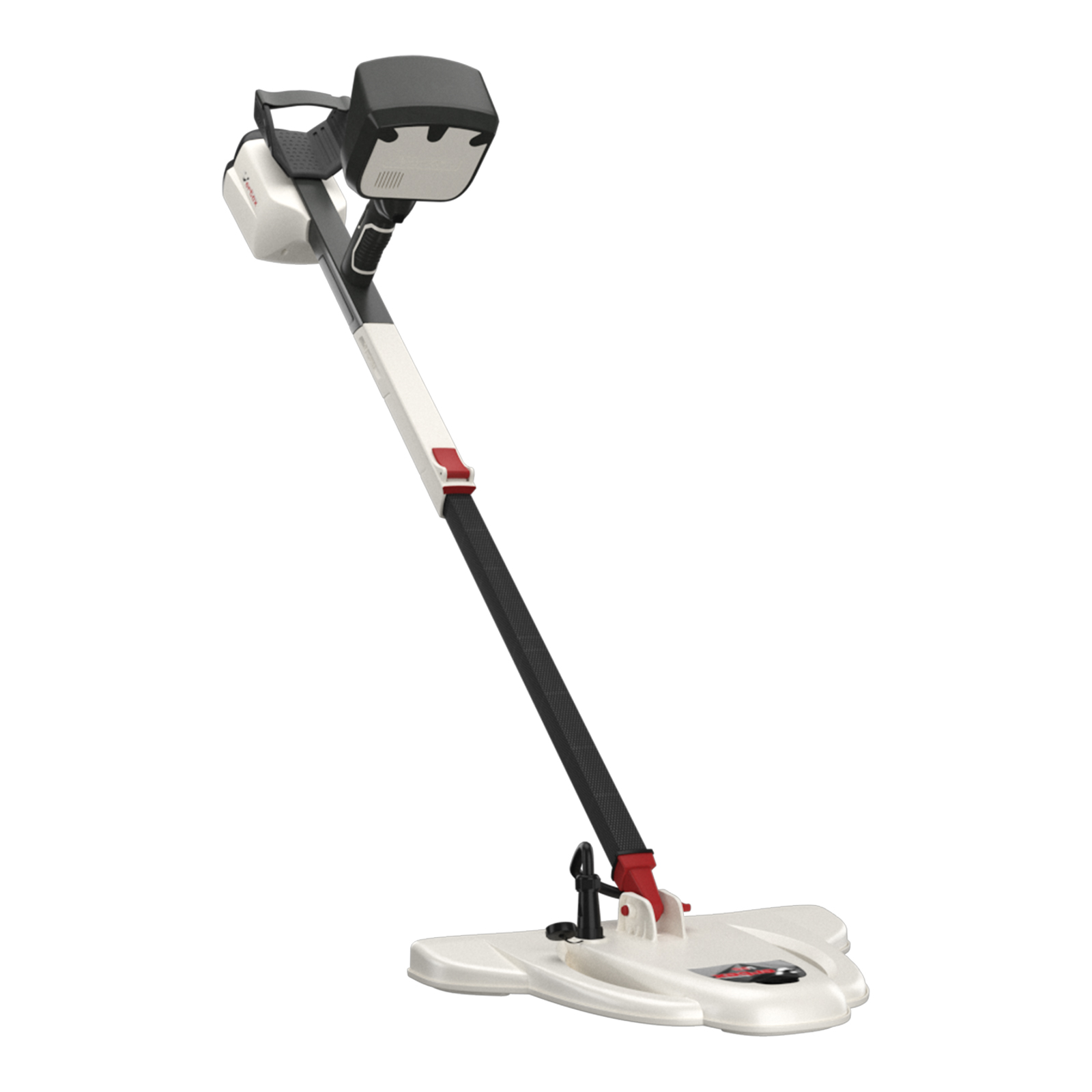

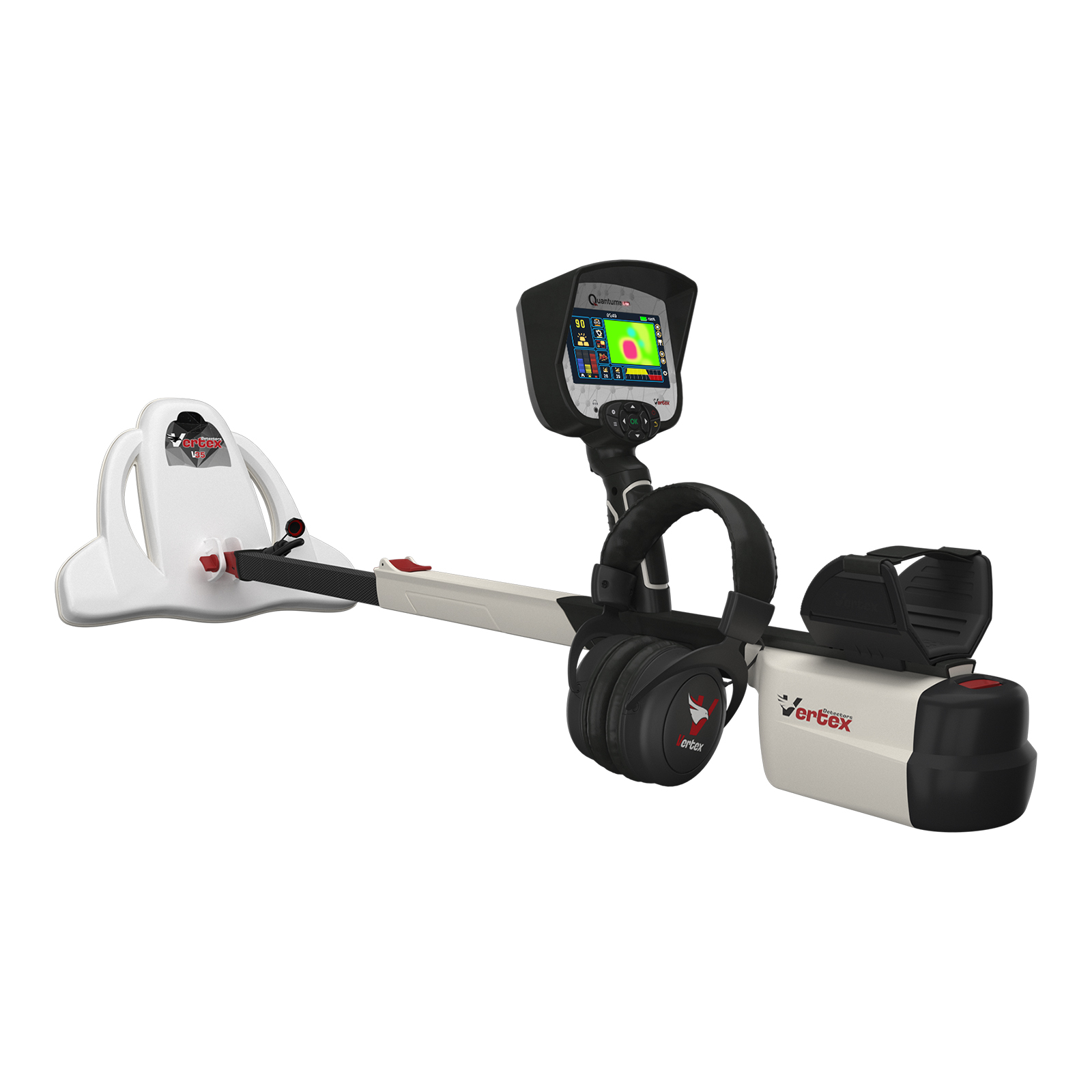

The Quantum Lite marks a breakthrough in underground detection technology. This detector combines a layered imaging system with 2D and 3D scanning capabilities to locate buried metals, voids, tunnels, and relics with high accuracy. At its core is the ASU V35 (Active Sensing Unit) which allows you to visualise subsurface targets in detailed images showing shape, size and depth.
Designed for versatility, the Quantum Lite supports optional coil expansions (such as V10 and V25) for extended coverage and deeper detection. The user interface features a high-resolution 5-inch full-colour screen, intuitive controls, and a rugged build that withstands field conditions. Whether you are working on archaeological terrain, mineralised soil, or remote desert areas, the Quantum Lite adapts with automatic soil calibration to maintain stable and accurate performance.
This detector is ideal for locating precious metals, gold nuggets, hidden cavities and large buried structures. With its advanced imaging system and comprehensive detection capabilities, the Quantum Lite offers a professional-grade solution at a competitive price — perfect for serious explorers seeking depth, accuracy and reliability.
Key Features
-
Precision Active Sensing Unit (ASU V35) with 2D & 3D imaging for ground layer visualisation.
-
High-resolution 5-inch colour display with full-screen visuals and clear target feedback.
-
Automatic soil calibration system that adapts instantly to different terrains and ground types.
-
Supports optional search coils (V10 for fine targets, V25 for deeper/larger targets) for flexibility.
-
Multi-mode imaging: layered scanning with real-time feedback, shape/size/depth analysis.
-

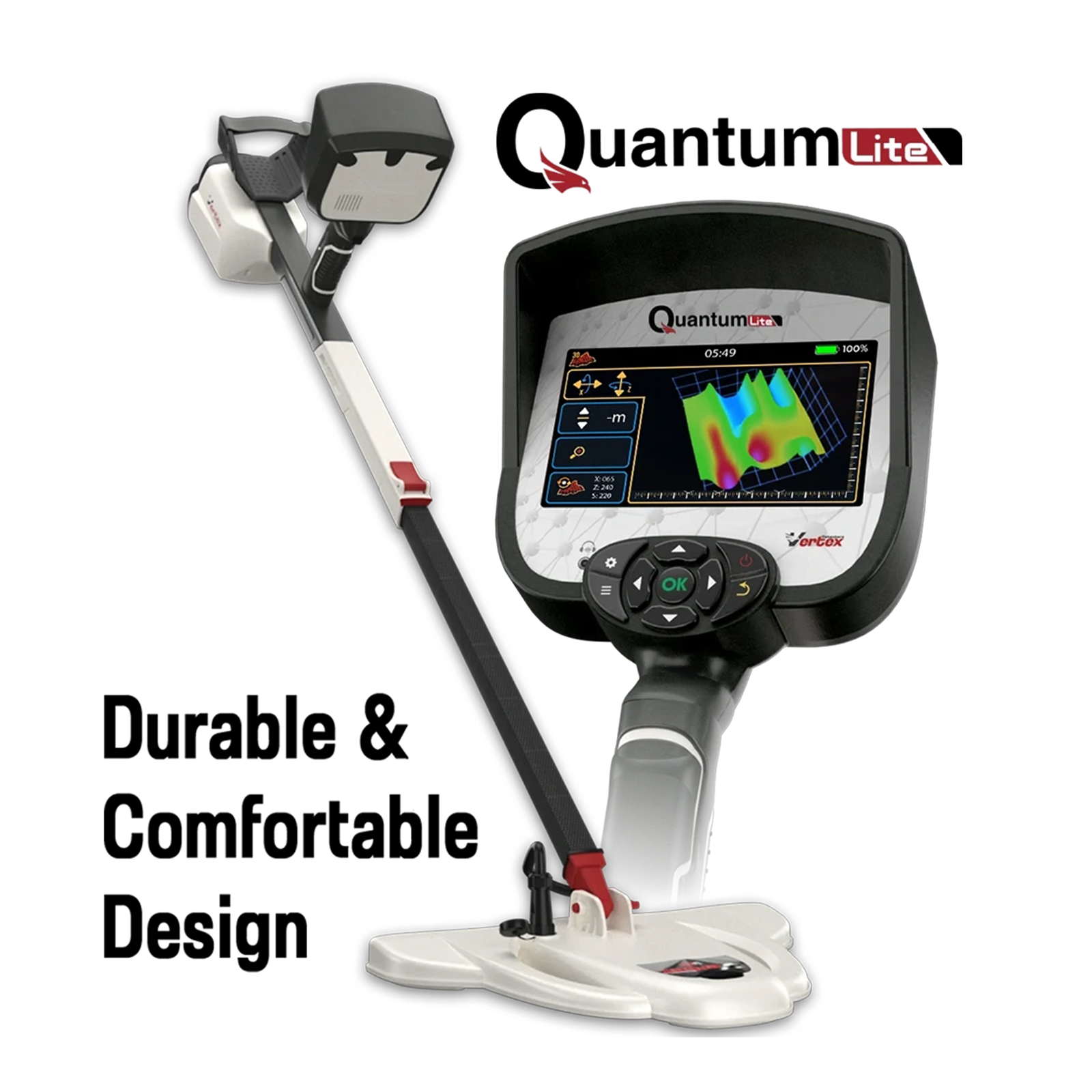

Rugged, dust- and shock-resistant housing built for demanding environmental use.
-
Lightweight and ergonomic design for comfortable field use during extended sessions.
-
Multi-language interface: supports major global languages for easy worldwide use.
-
Long-life rechargeable battery with fast Type-C charging for uninterrupted operation.
-
Excellent value — professional imaging technology at a competitive entry-level.
Technical Specifications
-
Brand / Model: Vertex Detectors – Quantum VX900
-
Active Sensing Unit: ASU V35 (dimensions approx. 13″ × 17.5″)
-

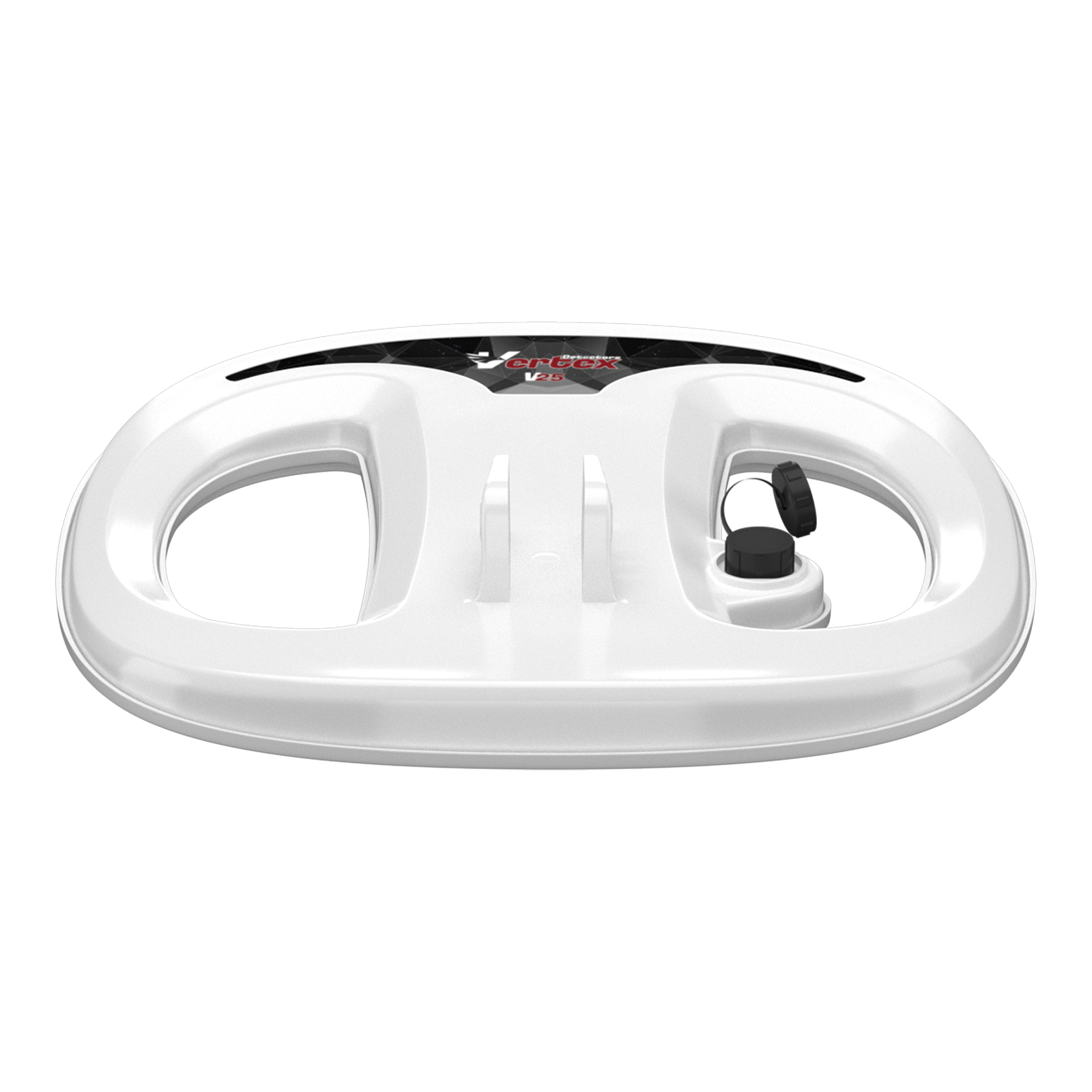

Supported Search Coils: V10 (12″ × 8″), V25 (12″ × 12″)
-
Display: 5″ colour TFT, 480 × 800 (WVGA) resolution
-
Processor: ARM Cortex M7
-
Battery: Lithium-ion, detachable, 12.6 V / 3500 mAh
-
Power Consumption: ~600 mA average
-
Battery Runtime: Over 6 hours (depends on mode)
-
Charger: USB-C / PD fast charger (65 W)
-
Languages Supported: English, German, French, Spanish, Italian, Russian, Arabic
-
Weight (device + V10 coil): ~2.5 kg
-
Weight (device + V25 coil): ~2.9 kg
-
Operating Temperature: ~10 °C to 60 °C
-
Storage Temperature: ~10 °C to 80 °C
-
Detection Depth (approx):
-
ASU V35: Up to ~18 m for voids / up to ~15 m for metals (depending on target & soil)
-
SFX with V10 coil: Up to ~2 m for smaller targets
-
SFX with V25 coil: Up to ~4 m for deeper/larger metal targets
-
-
Dimensions (packaged): approx. 92 × 23 × 55 cm
Note: Depth figures are dependent on target size, soil composition, environment and proper use.
What’s In The Box
-
Main control unit of Quantum Lite
-
Active Sensing Unit (ASU V35) sensor coil
-
Standard search coil (V10 – 12″ × 8″)
-
Telescopic adjustable shaft & hand-grip
-
Rechargeable lithium-ion battery pack
-
USB-C (PD) fast charger & cable
-
Wired professional headphones
-
Protective hard carrying/transport case with foam insert
-
User manual & quick start guide
